Video surveillance has become a cornerstone of public safety, smart city initiatives, and enterprise security strategies. High-definition (HD) and 4K video streams require robust, high-capacity backhaul to ensure uninterrupted monitoring, real-time analytics, and secure storage. Traditionally, fiber optic cables have been the gold standard for backhaul connectivity. However, fiber is costly, slow to deploy, and often impractical in outdoor or remote environments.
This is where Fixed Wireless Access (FWA) and wireless mesh technology step in as game-changers. Offering cost effective gigabit-class throughput, scalability, and reliability, these video surveillence wireless backhaul solutions are transforming the way organizations build surveillance networks.
The Challenge: Fiber Limitations in Video Surveillance Backhaul
Deploying video surveillance across cities, campuses, or industrial zones comes with one major challenge: connectivity. While cameras are easy to mount on light poles, rooftops, and buildings, connecting them to a centralized monitoring system often requires extensive cabling.
Fiber deployment faces some major hurdles:
High Costs: Trenching and laying fiber cost hundreds of thousands of dollars per mile.
Time Delays: Fiber projects can take months—or even years—due to permitting and construction.
Topology constraints: linear or remote runs may cross terrain, water, private property or historic areas
Single points of failure: a cut fiber can isolate large segments.
For municipalities and enterprises that need real-time security today, waiting for fiber is not an option.
The Solution: Outdoor Wireless FWA and Mesh Networks for Video Surveillance
The bottleneck: transporting high-resolution video
Modern IP cameras may stream 4K, 8MP, or even multi-megapixel analytics video. Each camera can generate tens to hundreds of Mbps, especially if multiple streams or analytics are active (e.g. object detection, AI video). To centralize storage, analytics, or monitoring, these streams must be carried back on a backbone (or “backhaul”) network.
Benefits of wireless backhaul
Rapid deployment: installations in days or weeks (versus months for fiber).
Lower capital cost: often one-tenth the cost of fiber in some cases.
Scalability & flexibility: nodes can be added, moved, or re-routed.
Extended Coverage: Ideal for large outdoor areas where fiber isn’t available.
Redundancy & self-healing (mesh): alternative paths can automatically re-route if a node fails.
High throughput: modern microwave, millimeter-wave, and point-to-point links can support gigabit speeds.
Outdoor ruggedness: designs with outdoor-rated radios and hardened switches survive weather.
What is Fixed Wireless Access (FWA)?
Fixed Wireless Access (FWA) delivers broadband-level connectivity via wireless radio links instead of physical cables or fiber. It can be deployed in both point-to-point (P2P) and point-to-multipoint (PtMP) configurations.
For video surveillance wireless backhaul, FWA provides:
High Bandwidth: Supports multiple HD and 4K video streams simultaneously.
Low Latency: Ensures real-time monitoring and instant playback.
Quick Deployment: Install and activate in days, not months.
Cost Efficiency: Up to 90% cheaper than running fiber.
What is Wireless Mesh Technology?
Wireless mesh networks use multiple nodes that communicate with each other to form a self-healing, scalable network. Unlike traditional networks, mesh does not depend on a single point of failure.
When to Use Wireless Backhaul (FWA / Mesh) vs Fiber
Here are guidelines to decide which approach fits best:
Often, a hybrid strategy works best: fiber backbone for aggregation, and wireless “last mile” or in-line mesh to reach cameras.
Case Study: 5-Mile Trail Surveillance via Wireless Mesh
Alpha Omega Wireless implemented a real-world deployment of wireless mesh for video backhaul, securing a 5-mile hike & bike trail. Below are key takeaways and lessons learned from that deployment:
Project Overview & Challenges
The trail lacked any existing fiber data infrastructure.
Running fiber across the full route was cost-prohibitive and time consuming.
The city needed 24/7 real-time video with future-proof scalability for more cameras or sensors.
Solution & Architecture

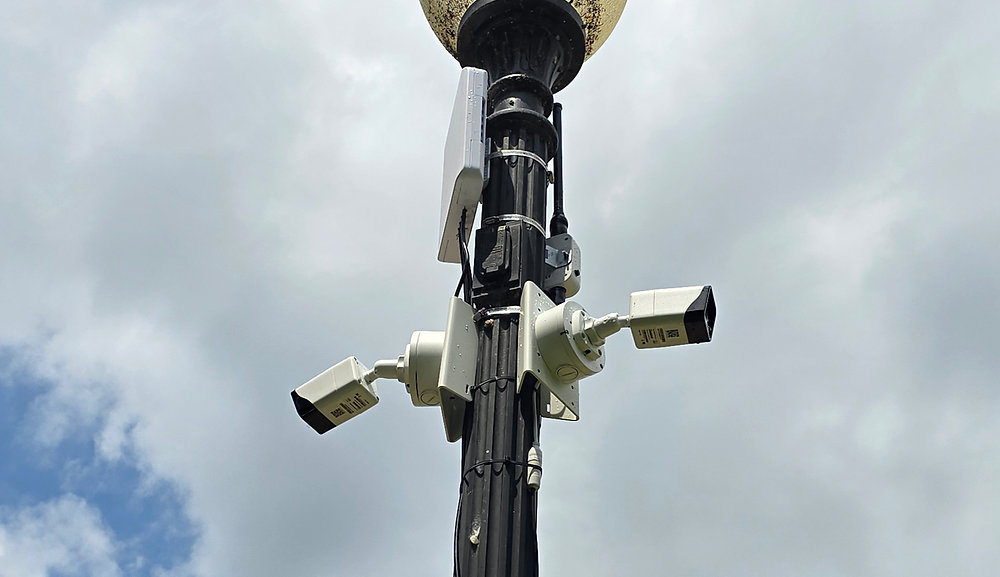

Designed a linear wireless mesh along the trail with nodes located on existing light poles.
Employed redundant routing so that traffic could self-heal and reroute around faulty nodes.
Provided multiple uplinks into city fiber network at different points for resiliency.
Delivered 1 Gbps wireless throughput, enabling high-resolution video streaming.
Used outdoor-rated hardened switches on each pole to support further cameras, sensors, or Wi-Fi hotspots.
Deployment & Cost
The system was installed in one week, a dramatic speed compared to fiber.
Total cost was about one-tenth of what a fiber deployment would cost.
Outcomes & Benefits
Local law enforcement now has real-time trail visibility, deterring crime and aiding investigations.
The infrastructure is future-ready — nodes can support more cameras, sensors, or community services.
The setup reduced risk and improved public safety, with minimal disruption to trail use.
Lessons & Guidelines
Leveraging existing street infrastructure (lamp poles) reduced structural cost.
Redundancy and mesh routing prevented single node failures from disrupting the network.
Overprovisioning capacity (1 Gbps) allowed growth and peak load handling.
Rapid deployment was possible because there was minimal civil works and no trenching.
Conclusion
Wireless FWA and mesh networks offer a powerful alternative to costly fiber for video surveillance backhaul, especially in outdoor, linear, or hard-to-wire environments. For municipalities, utilities, and enterprises, outdoor wireless FWA and mesh networks deliver the perfect balance of speed, cost, and resilience for surveillance backhaul . As shown in the AO Wireless 5-mile trail case (Learn More Here), properly designed mesh supervision systems deliver redundant, scalable, high-throughput connectivity at a fraction of fiber’s cost.
If you’re planning a city surveillance deployment, park monitoring, campus video backbone, or remote security camera network, wireless backhaul may be your best choice.
AO Wireless has engineered hundreds of high-capacity wireless backhaul networks—from trail surveillance to citywide Smart City backbones. If you’re planning a new project, we can help design a secure, redundant, and future-proof wireless network tailored to your needs.
Alpha Omega Wireless is a top consulting and wireless network engineering firm that can perform a site survey, link budget analysis, and a pilot deployment. Start small, validate performance, and scale out. Contact us if you’d like help drafting a project proposal, link-budget spreadsheet, or hardware recommendation list.
